Coating Gallery
Browse our portfolio of completed coating projects across different technologies and industries.

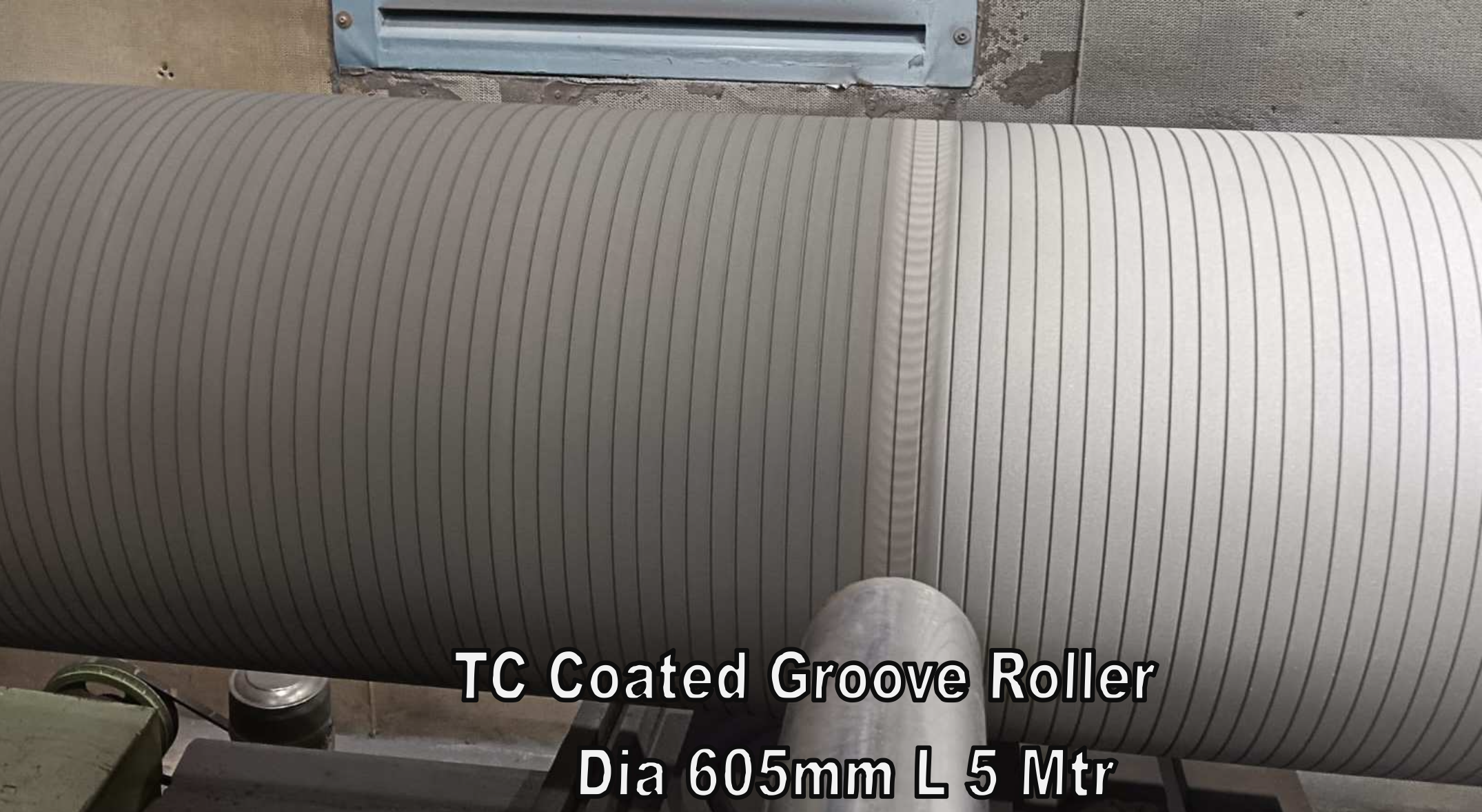

TC Coated Groove Roller
Tungsten Carbide coated groove roller — 605mm diameter, 5 meters length — for wire and cable industry applications.

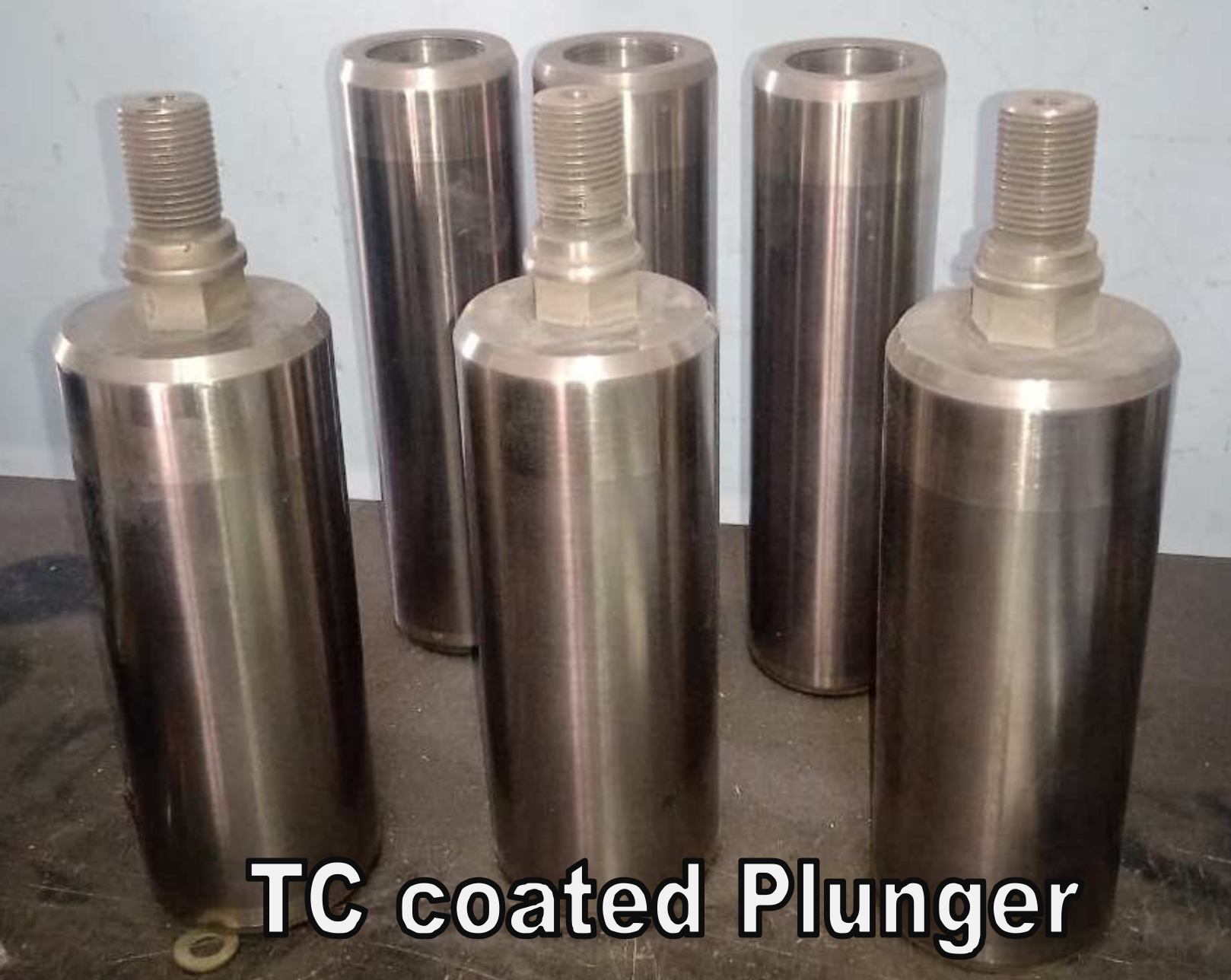

TC Coated Plungers
Tungsten Carbide coated plungers with mirror-smooth finish for high-pressure pump applications in oil & gas and chemical industries.

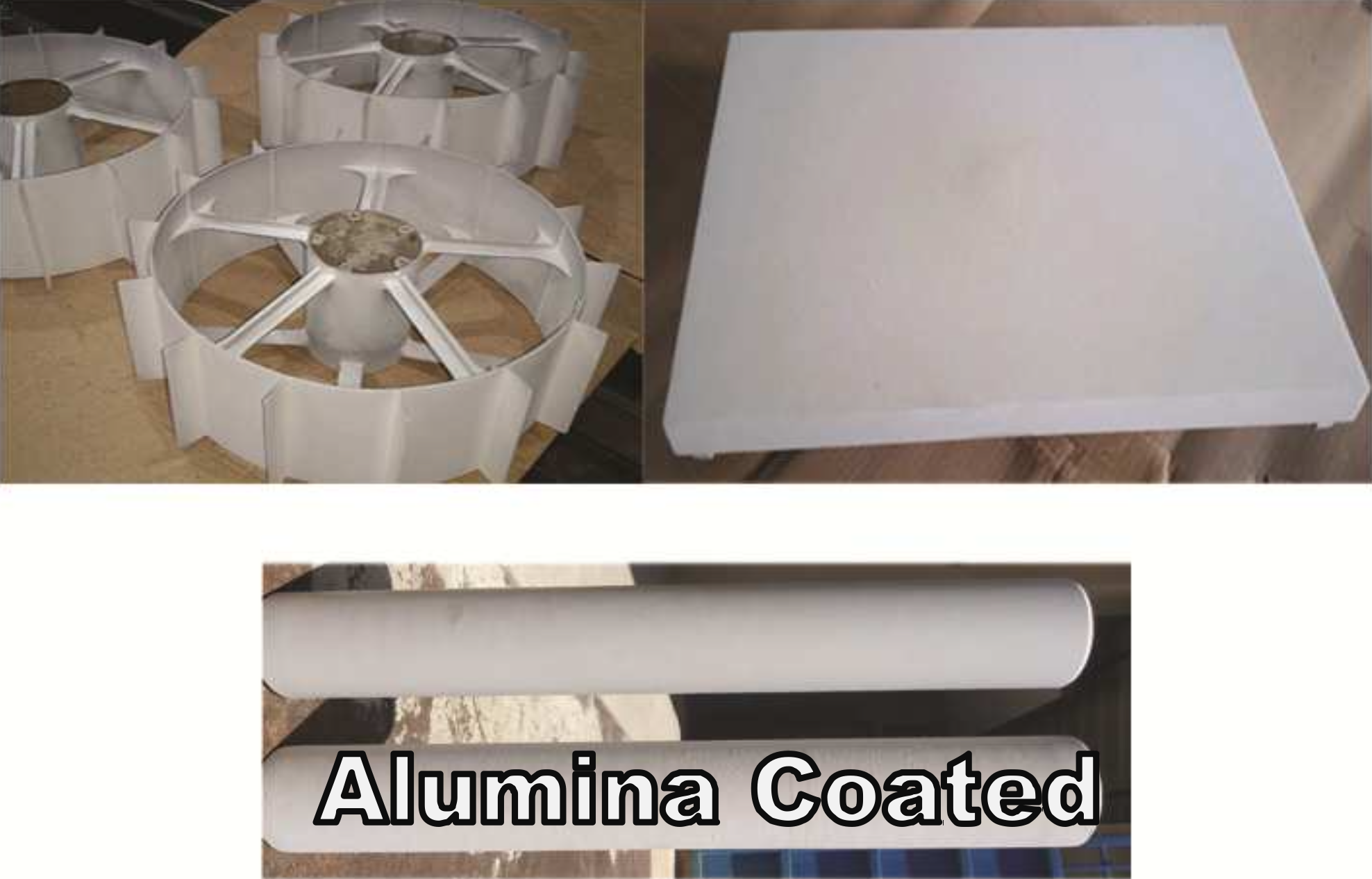

Alumina Coated Components
Alumina ceramic coated impellers, plates, and rollers providing electrical insulation and non-stick surface properties.

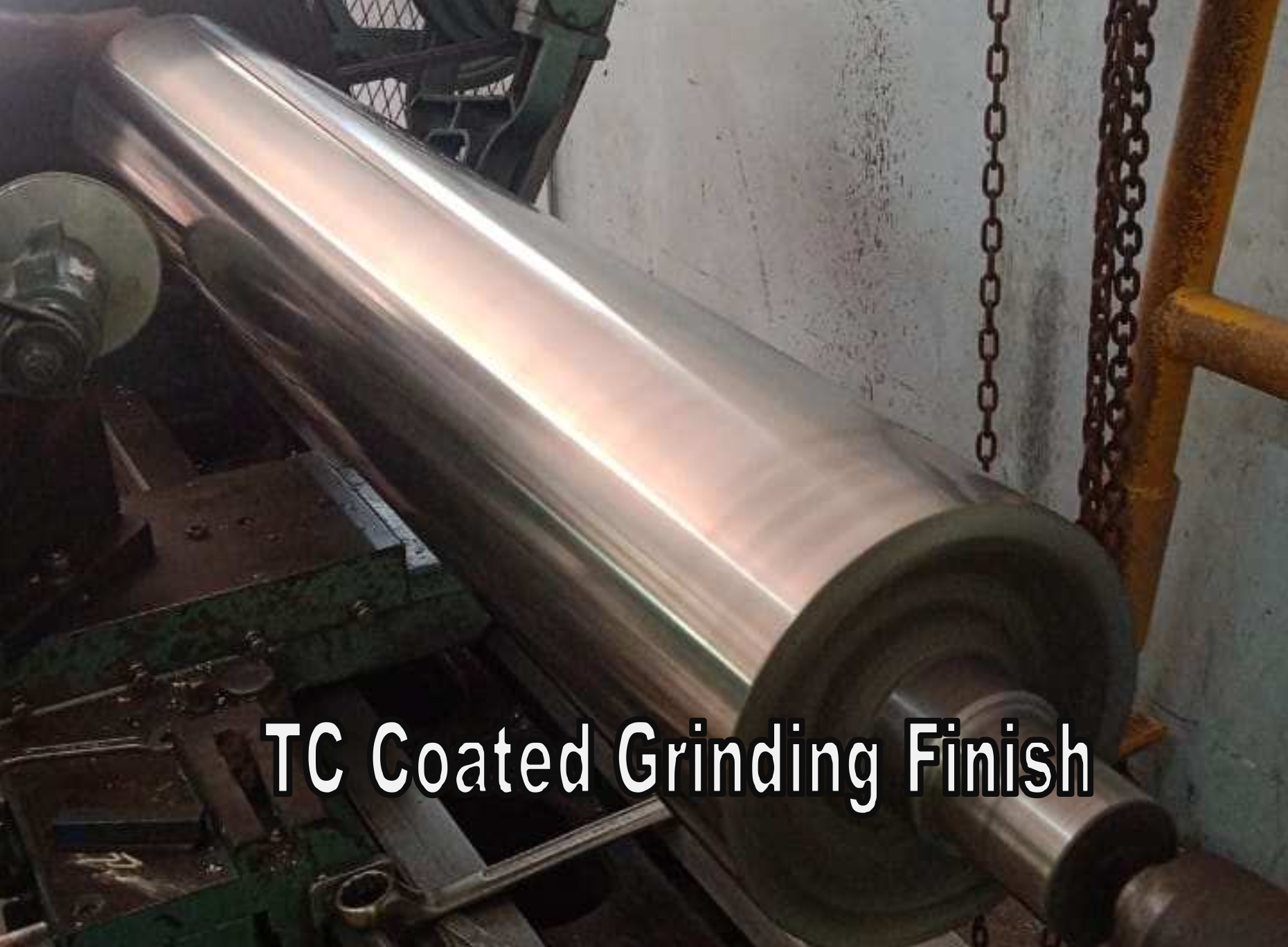

TC Coated Grinding Finish
Tungsten Carbide coated large roller on precision cylindrical grinding machine achieving tight dimensional tolerances and mirror finish.

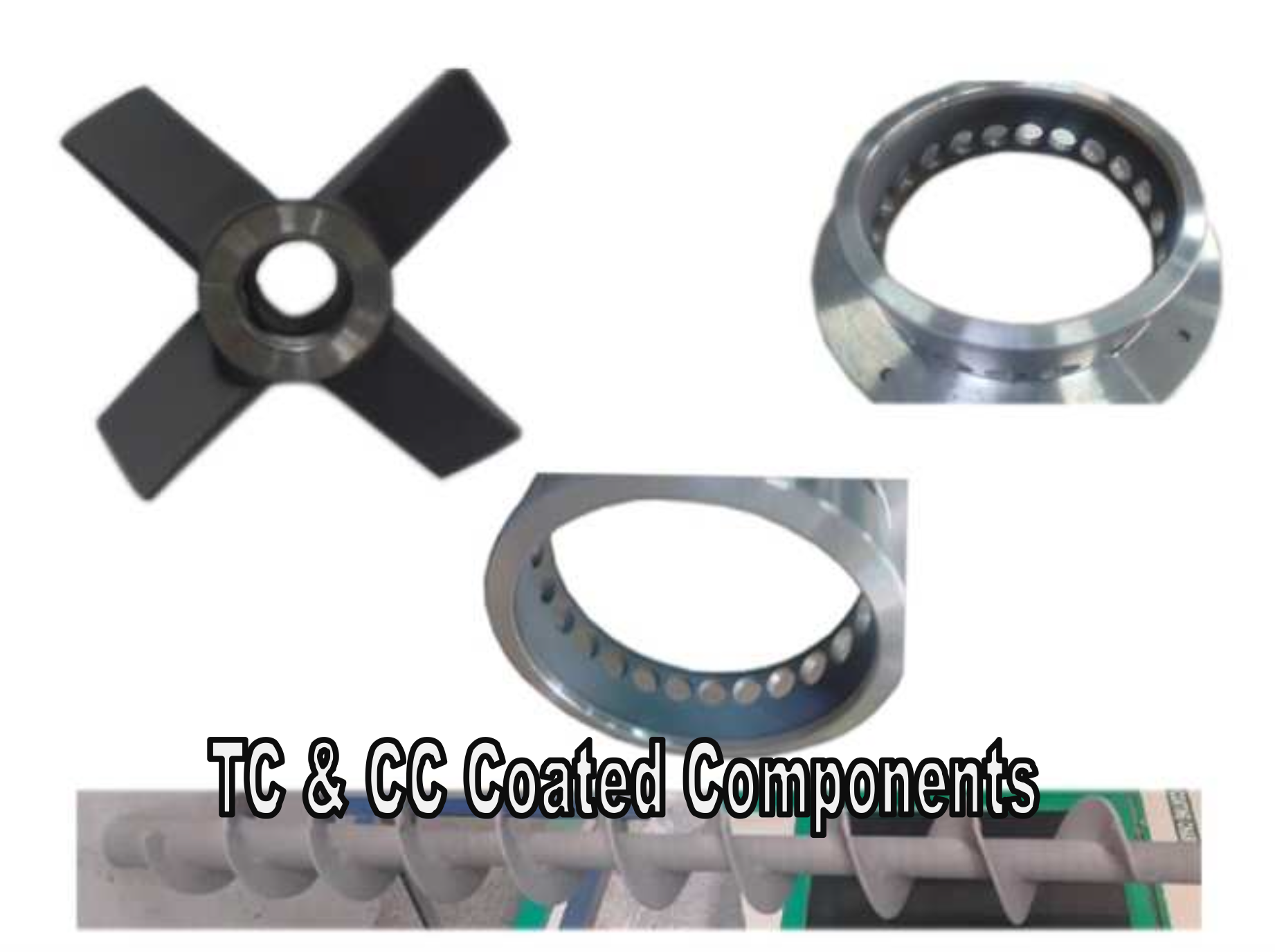

TC & CC Coated Components
Tungsten Carbide and Chromium Carbide coated impeller blades, bearing housings, and screw conveyors for heavy industrial use.

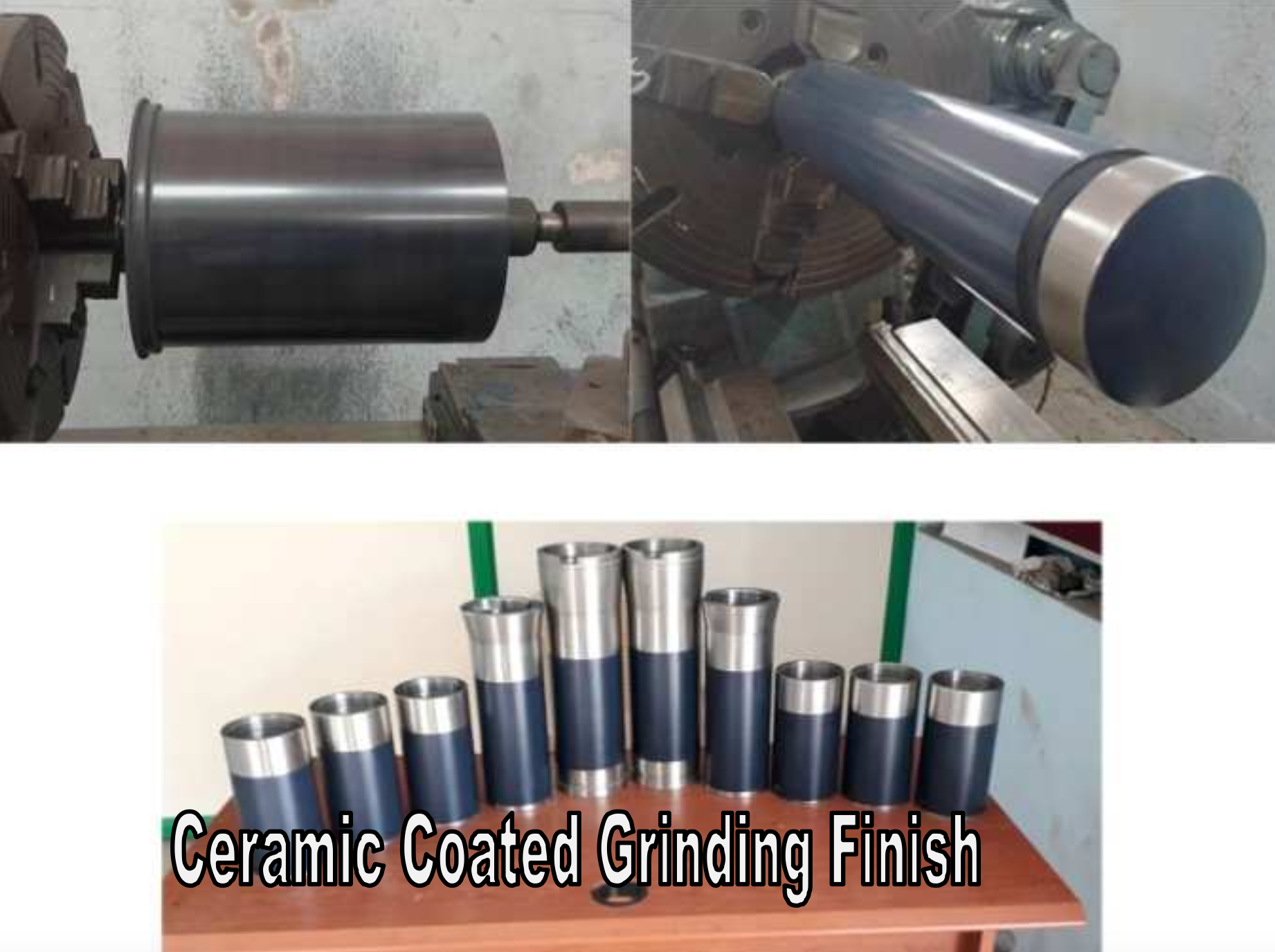

Ceramic Coated Grinding Finish
Ceramic coated sleeves and plungers on grinding lathe with precision-ground surfaces for pump and valve industry applications.

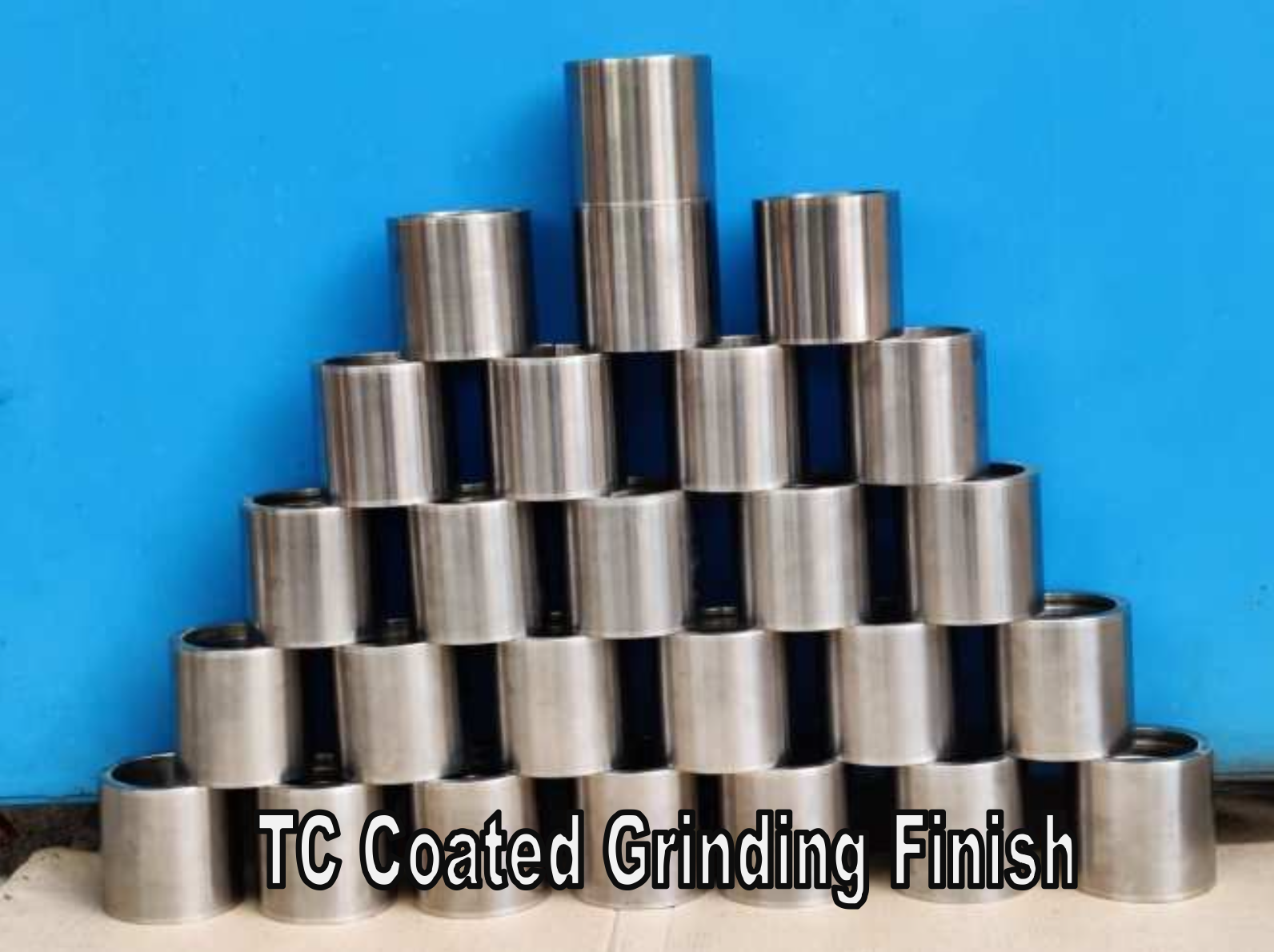

TC Coated Bushings — Batch Production
Large batch of Tungsten Carbide coated bushings with grinding finish, showcasing high-volume production capability.

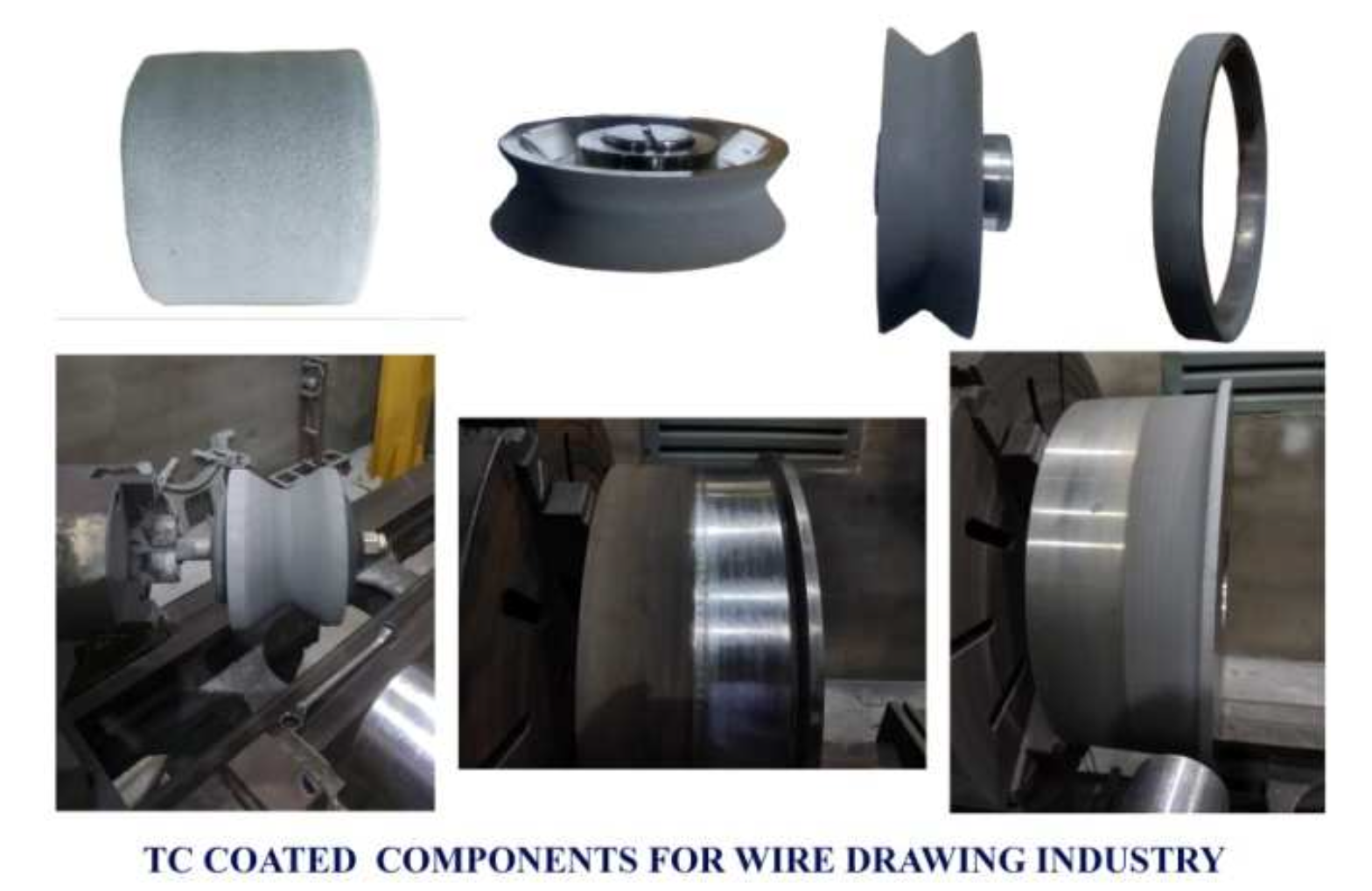

TC Coated Wire Drawing Components
Tungsten Carbide coated capstans, pulleys, and drums for the wire drawing industry — extending component life by up to 5x.

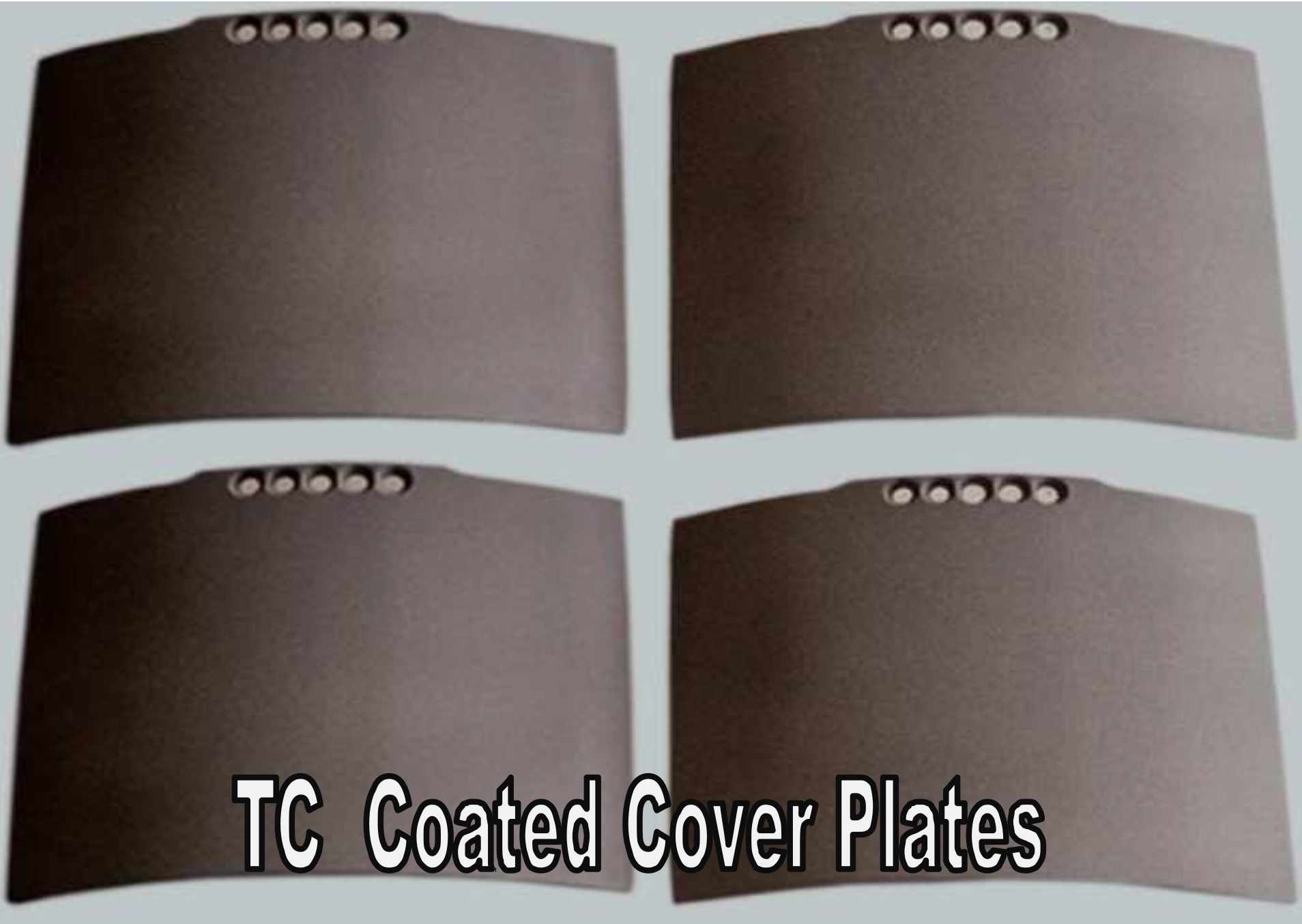

TC Coated Cover Plates
Tungsten Carbide coated cover plates for abrasion protection in high-wear industrial environments.

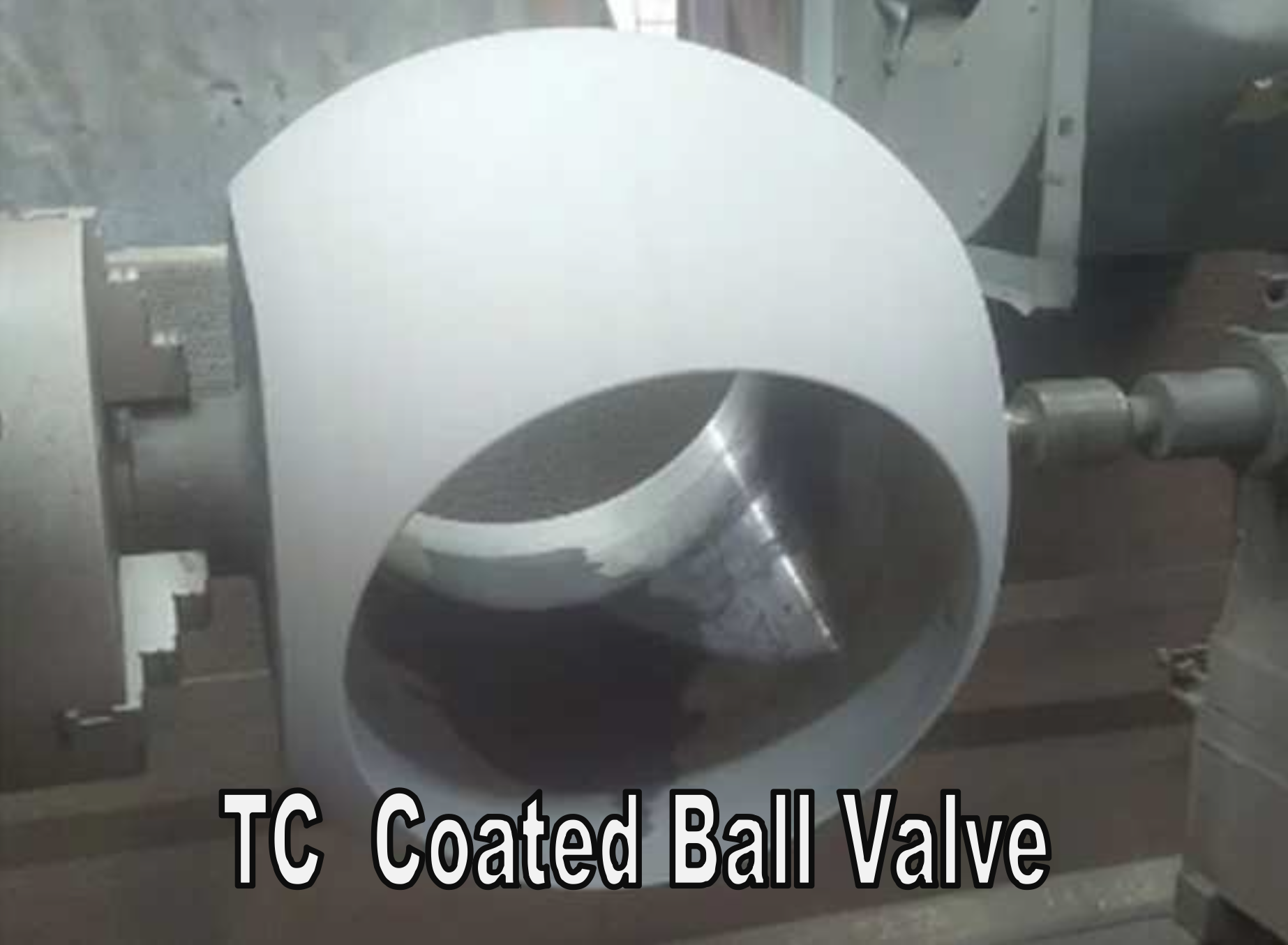

TC Coated Ball Valve
Tungsten Carbide coated ball valve with precision-ground sealing surface for oil & gas and valve industry applications.

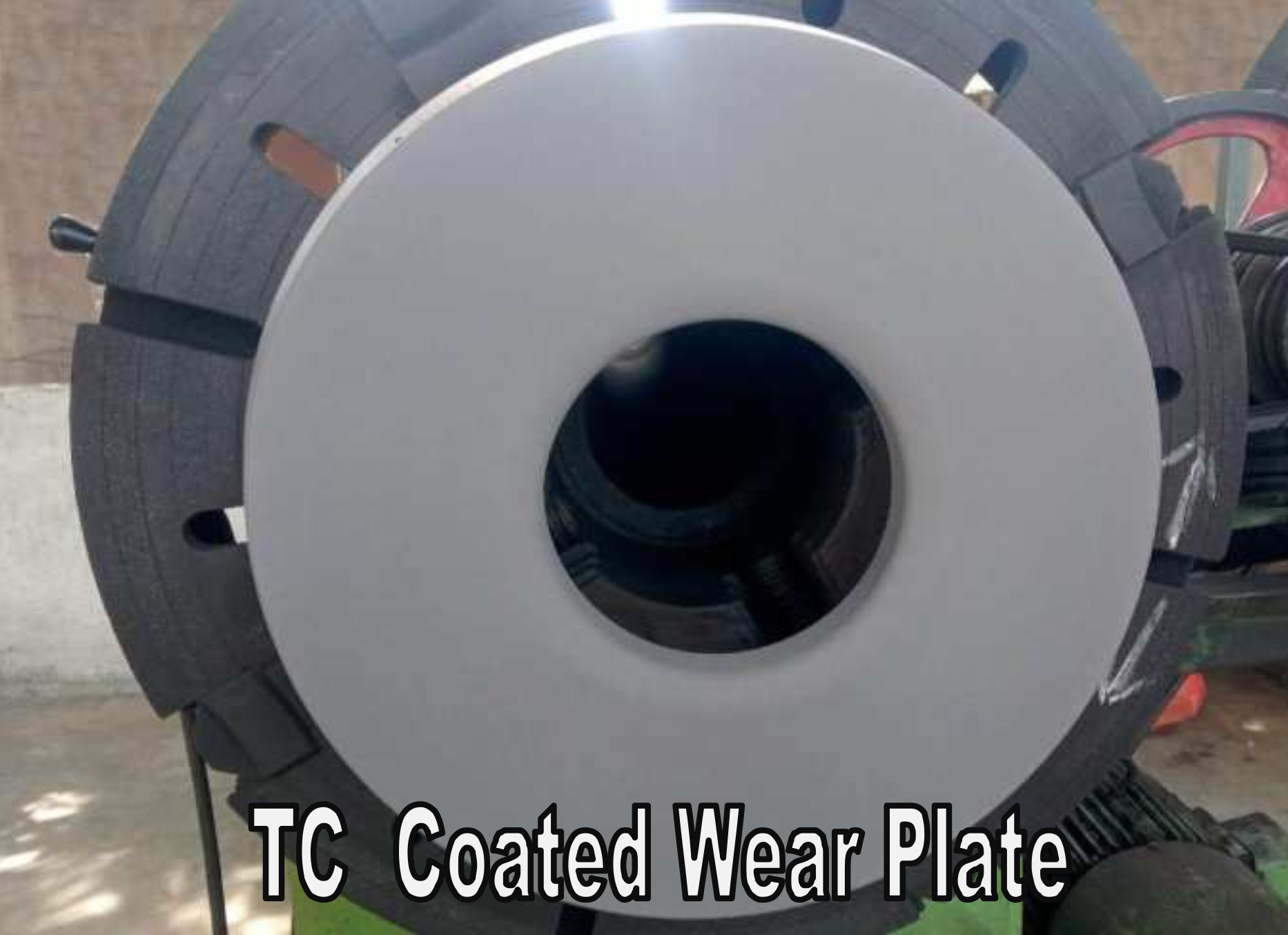

TC Coated Wear Plate
Tungsten Carbide coated circular wear plate mounted on lathe for pump and turbine applications requiring high abrasion resistance.
TC Coated Valves — 800mm Dia
Large-diameter (800mm) Tungsten Carbide coated butterfly and gate valve discs for thermal power plant and oil & gas applications.

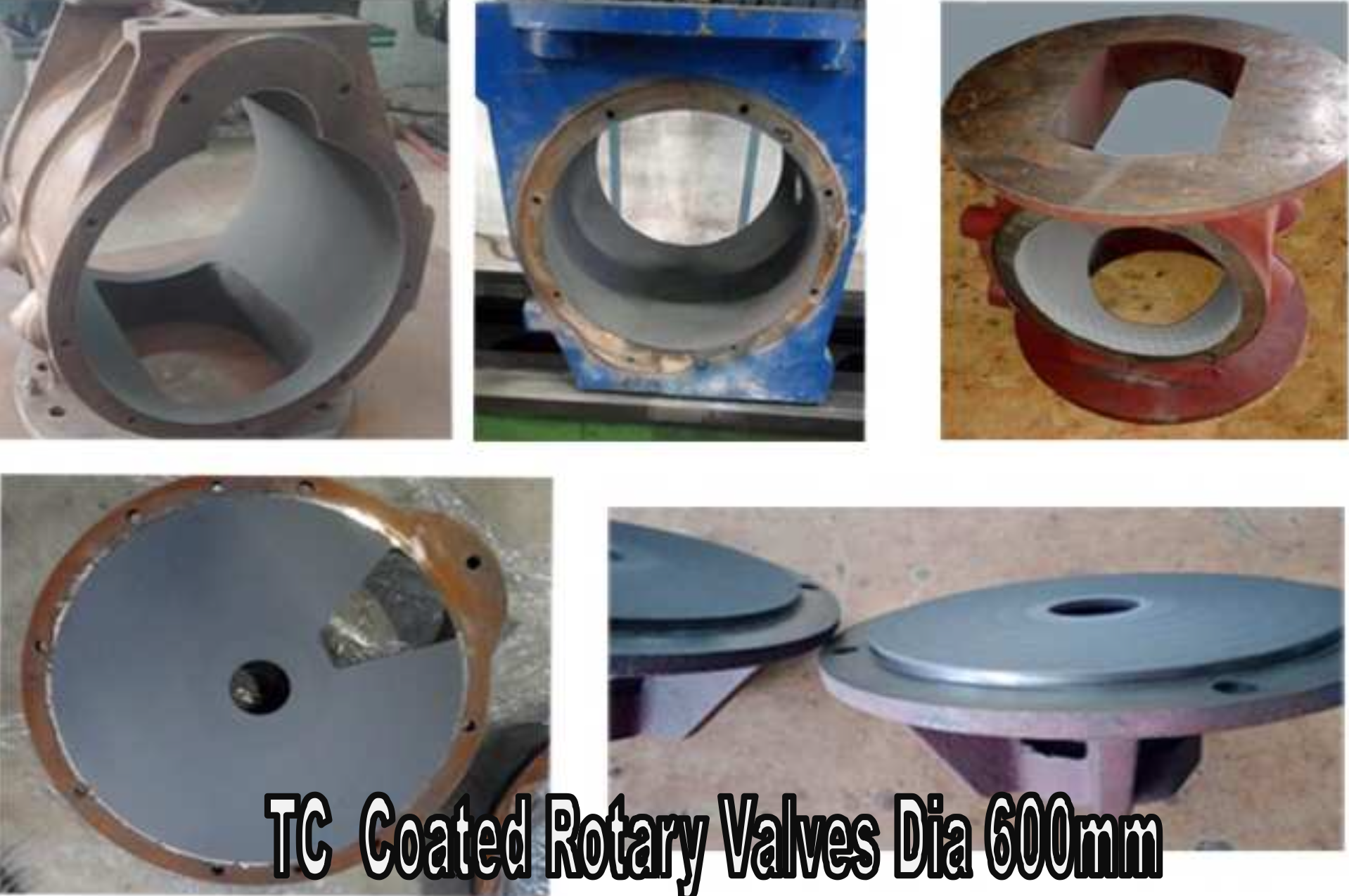

TC Coated Rotary Valves — 600mm Dia
Tungsten Carbide coated rotary valve housings and discs (600mm diameter) for chemical and process industry service.

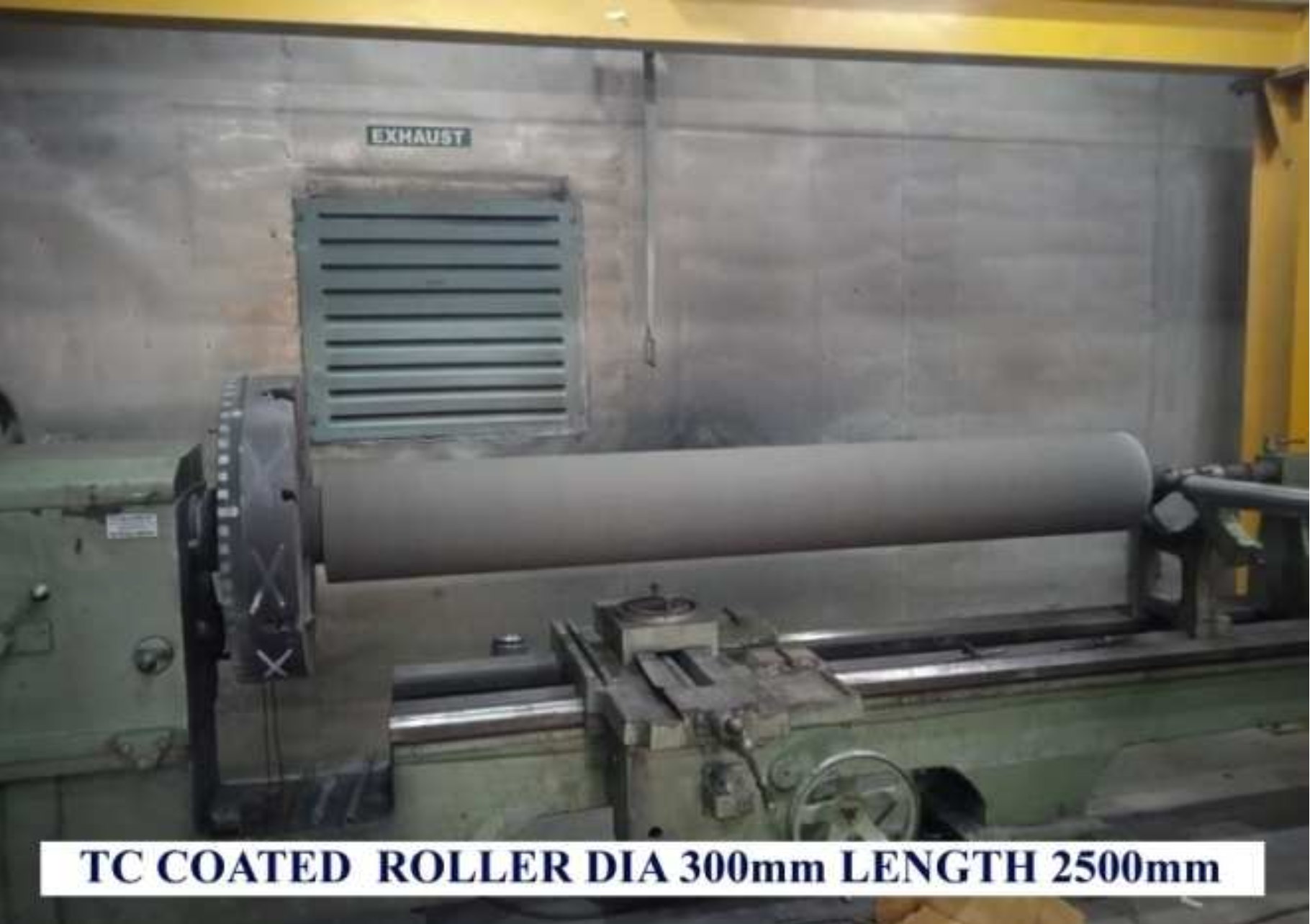

TC Coated Roller — 300mm x 2500mm
Tungsten Carbide coated industrial roller (300mm dia, 2500mm length) on grinding machine for paper and printing industry use.

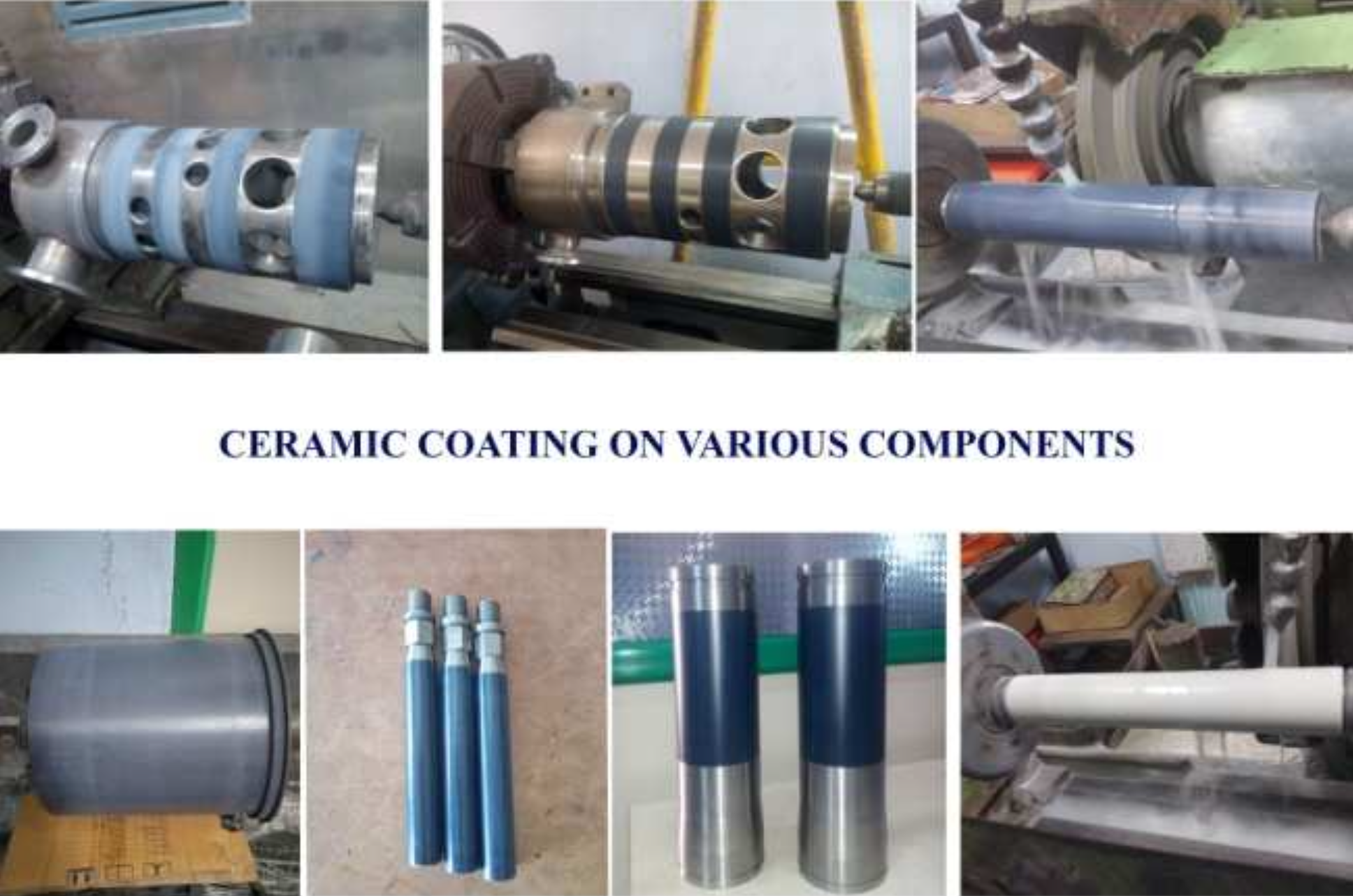

Ceramic Coating on Various Components
Ceramic coated pistons, sleeves, shafts, rollers, and plungers for diverse applications including pump, textile, and printing industries.

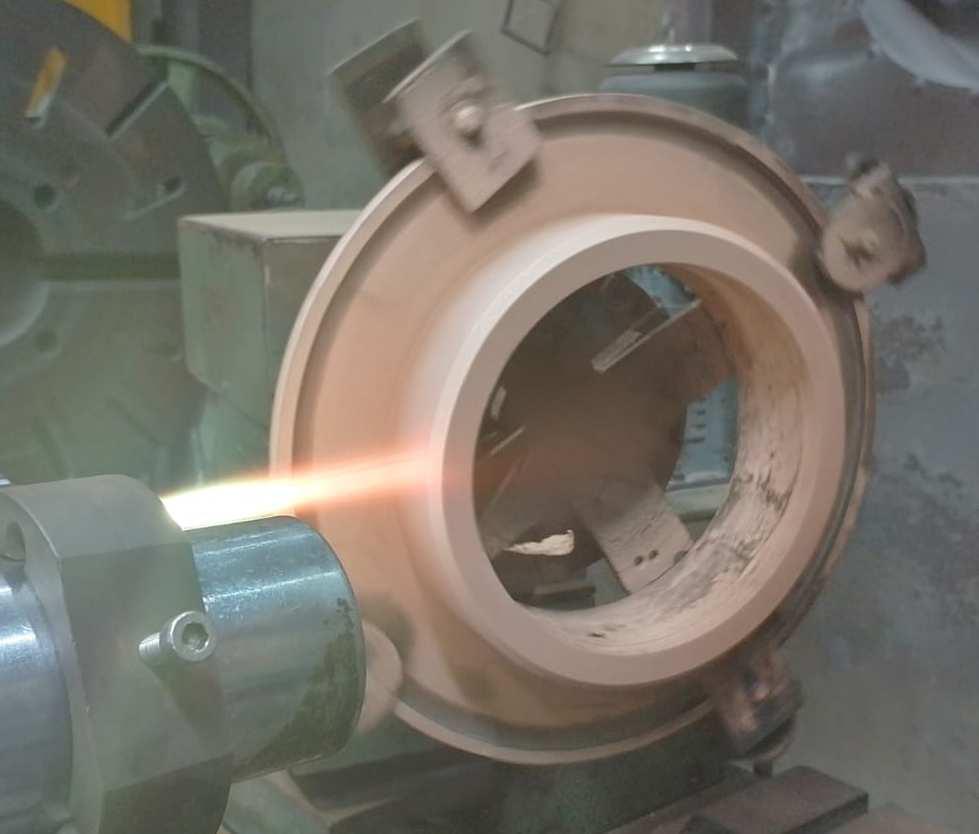

HVOF Coating in Progress
Live HVOF coating process on a pump casing bore — molten metal being applied to the inner surface for wear and corrosion protection.

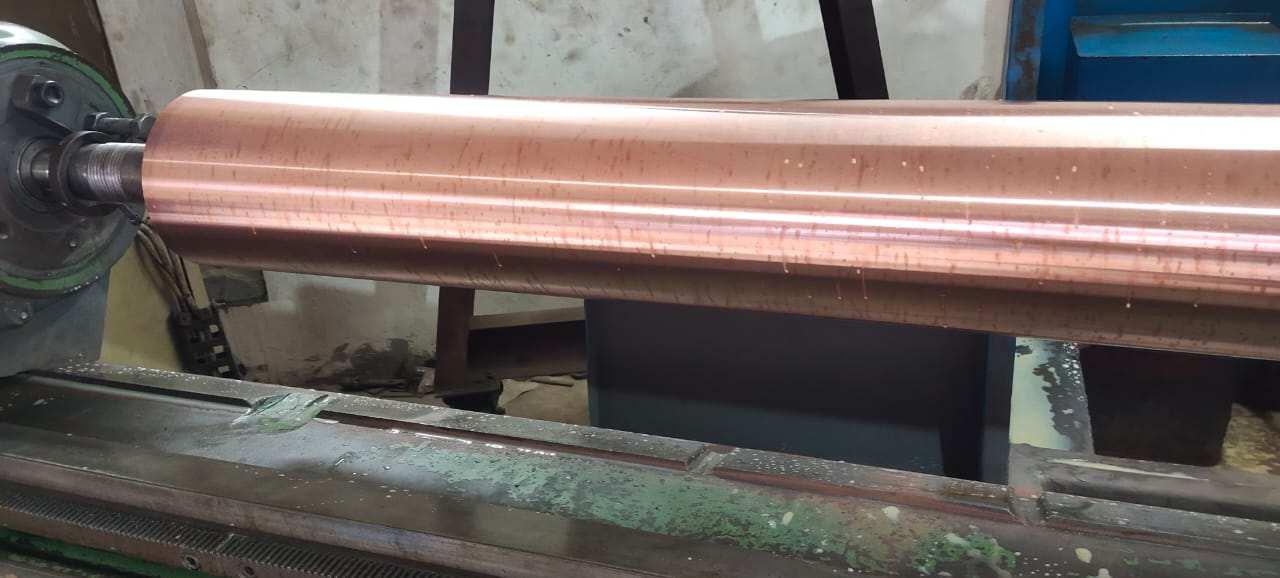

Copper Coated Roller
Copper metalized roller on lathe for electrical conductivity and bearing surface applications in printing and textile industries.

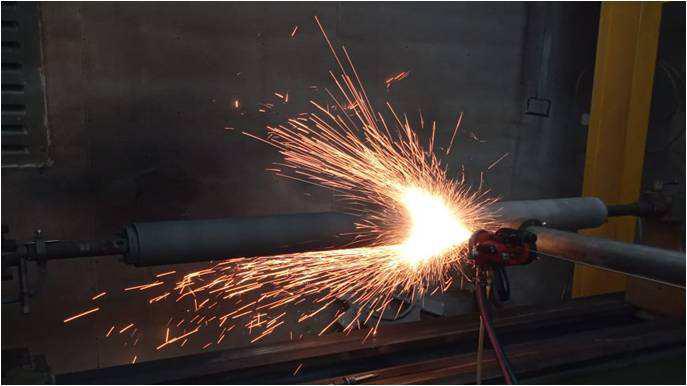

Metalizing Process — Spark Spray
Wire metalizing process in action with characteristic spark shower, applying protective metal coating to a cylindrical shaft component.

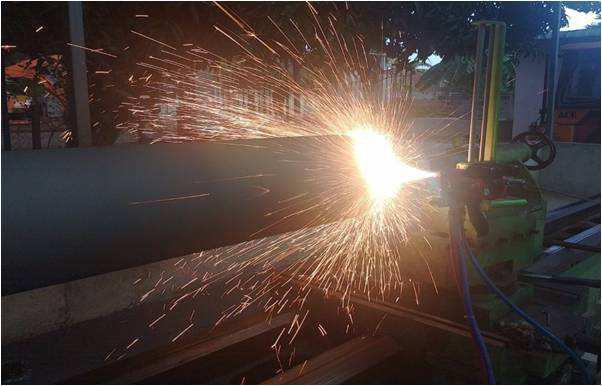

Metalizing — Large Pipe Coating
On-site metalizing of a large-diameter pipe with intense spark spray, providing long-term corrosion protection for structural applications.

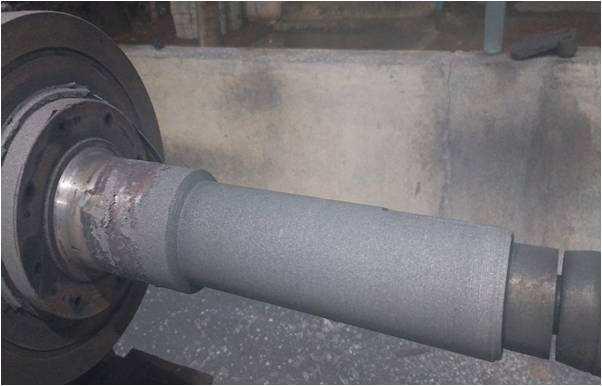

TC Coated Shaft — As-Sprayed
Tungsten Carbide coated shaft in as-sprayed condition before grinding, showing the characteristic rough coating texture ready for finishing.

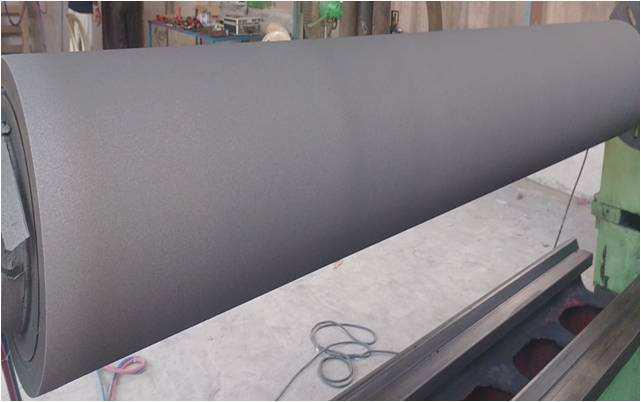

TC Coated Large Roller — As-Sprayed
Large-diameter Tungsten Carbide coated roller in as-sprayed condition, showcasing uniform coating application on heavy industrial rollers.

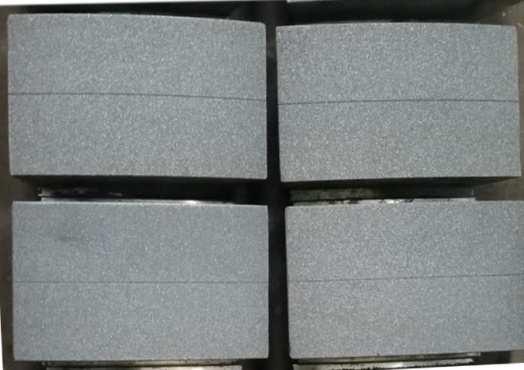

TC Coated Wear Blocks
Batch of Tungsten Carbide coated rectangular wear blocks with uniform coating texture for high-abrasion industrial applications.

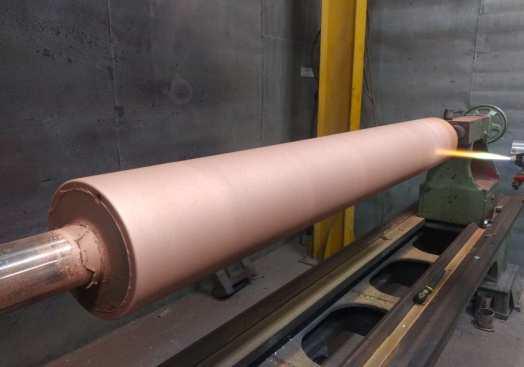

Copper HVOF Spray on Roller
Live copper HVOF spray coating process on a large roller — showing the spray gun applying molten copper for conductivity and bearing applications.

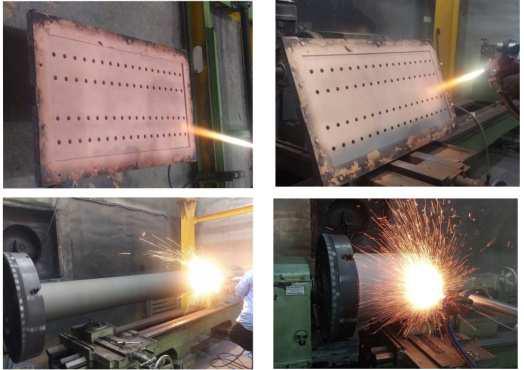

Metalizing Process — In Action
Metalizing coating in progress — plate coating and shaft coating with characteristic high-intensity flame and spark patterns.
